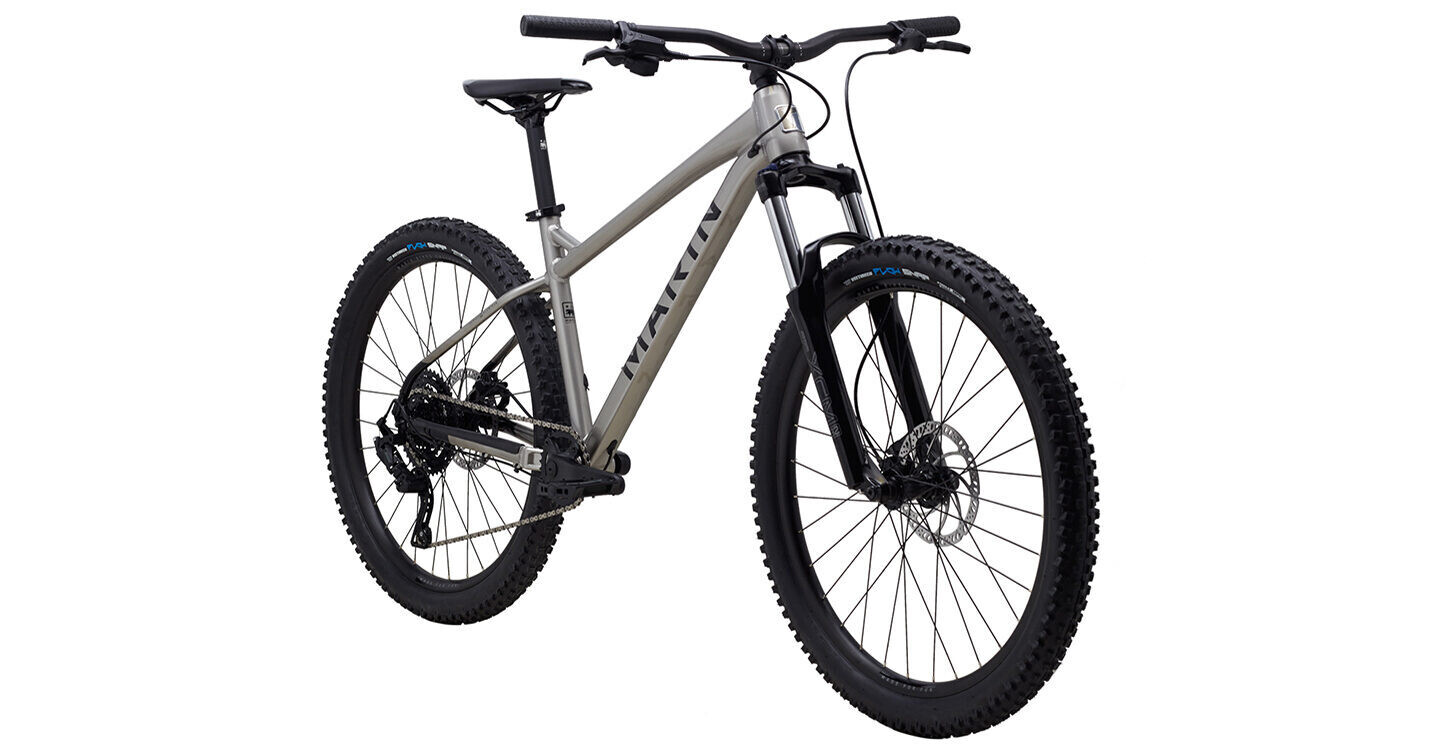

MARIN San Quentin 1 - 27.5" Grey/Black SMALL

DOWNHILL TRAILS

LIGHT DIRT JUMP

ENDURO

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.

SPECIFICATIONS

• FRAME

  Series 2 6061 Aluminum, Double Butted Frame, 141mm Open Dropout, 73mm Threaded BB

• FRONT SUSPENSION

  SR Suntour XCM32 Boost 15x110mm Spacing, 120mm Travel, Lock Out, 27.5", Bolt-On Thru-Axle, 47mm Offset

• RIMS

  Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible

• HUB, REAR

  Forged Alloy, 141mm Width, Disc, 32H, Shimano Standard Freehub Body

• HUB, FRONT

  Forged Alloy, 110x15mm, Disc, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead

• DERAILLEUR, REAR

  MicroShift RD-M9195M, 9 Speed, With Clutch

• DERAILLEUR, FRONT

  -

• SHIFT LEVER

  MicroShift SL-M9195-R, 1x9 with Bearings

• CRANKSET

  Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

• BOTTOM BRACKET

  Sealed Cartridge Bearing, Square Taper

• CHAIN

  KMC X-9

• CASSETTE

  Sunrace, 9 Speed, 11-46T

• BRAKE, FRONT

  Tektro M275 Hydraulic Disc Brake, 180mm Rotor

• BRAKE, REAR

  Tektro M275 Hydraulic Disc Brake, 160mm Rotor

• BRAKE LEVERS

  Tektro M275 Hydraulic Disc

• HANDLEBAR

  Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

• STEM

  Marin Alloy, 45mm

• GRIPS

  Marin MTN, Closed End

• HEADSET

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  Marin Alloy, 30.9mm

• SADDLE

  Marin Speed Concept

• PEDALS

  Nylon Platform

• EXTRAS

  -
