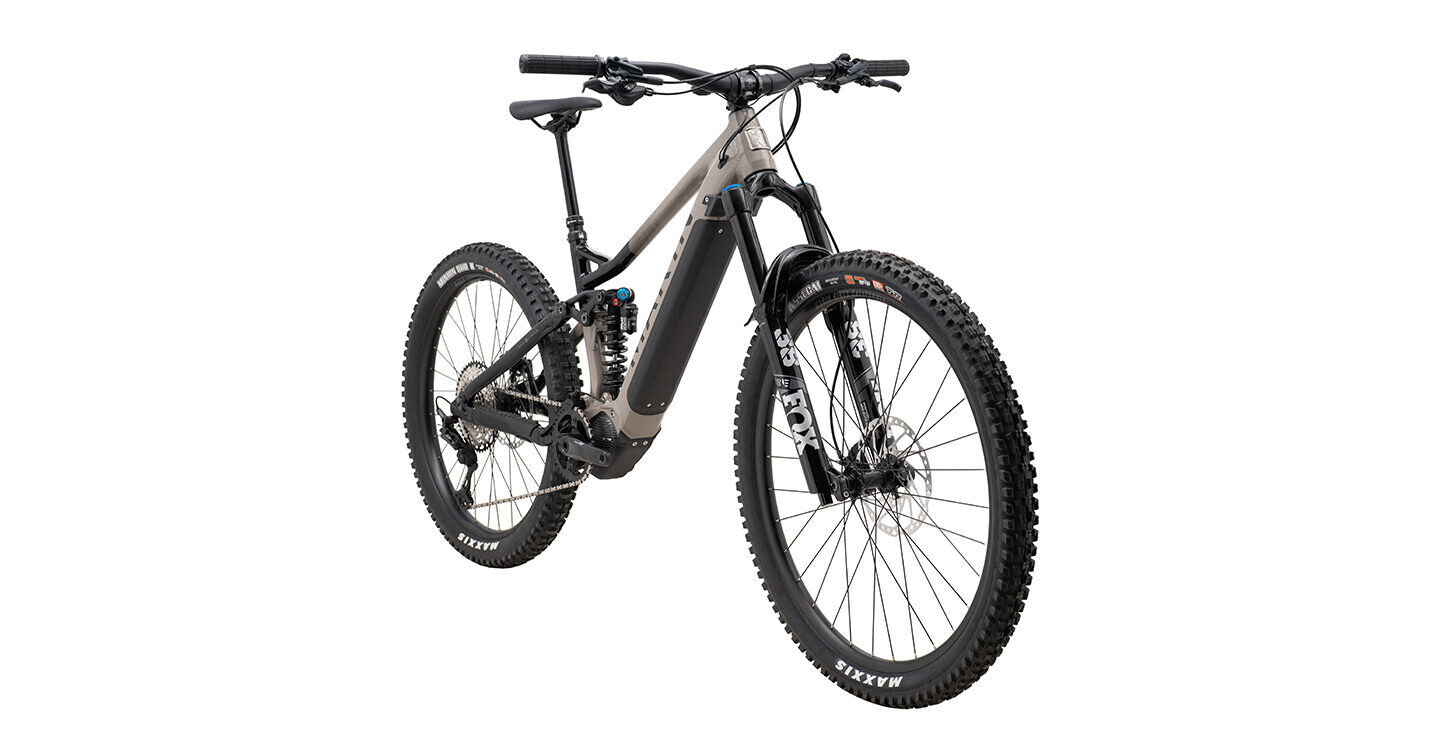

MARIN Alpine Trail E2 - MX Ebike Black/Tan 2024 SMALL

The Marin Alpine Trail E2 is our top-end Alpine Trail, ready to tame the roughest and toughest of trails. For the best of the bunch, we’ve packed in the big-dog Shimano STEPs EP801 system and a long-lasting 630Wh battery, Fox 38/Float DHX2 Performance Elite suspension and a blend of Shimano XT and SLX 12-speed, including powerful 4-piston brakes.

• FRAME

  Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

• FORK

  Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

• SHOCK

  Fox DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb

• RIMS

  Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

• HUB REAR

  Shimano FH-TC500MSB, 148x12mm, Disc, MicroSpline Freehub Body

• HUB FRONT

  Shimano FH-TC500, 110x15mm, Centerlock, 32H

• SPOKES

  14g Black Stainless Steel

• TIRES

  Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible

• DERAILLEUR REAR

  Shimano XT 12-Speed, SGS

• SHIFT LEVER

  Shimano SLX 12-Speed, I-Spec EV

• CRANKSET

  Shimano XT M8150, 160mm Length, 38t Chainring

• MOTOR

  Shimano Steps EP801 Drive Unit, 250W, 85Nm, 20MPH Top Assisted Speed

• CHAIN

  KMC E12S, eMTB-Specific Chain

• CASSETTE

  SunRace, 12-Speed, Microspline, 10-51T

• BRAKES FRONT

  Shimano SLX 4-piston Hydraulic Disc, 203mm rotor

• BRAKES REAR

  Shimano SLX 4-piston Hydraulic Disc, 203mm rotor w/ speed sensor

• BRAKE LEVERS

  Shimano SLX, I-Spec EV

• HANDLEBAR

  Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

• STEM

  Marin CNC, 35mm Length, 35mm Bar Bore

• GRIPS

  Marin Grizzly Lock On

• HEADSET

  FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• SEATPOST

  X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

• SADDLE

  Marin eMTB Saddle

• PEDALS

  Marin MTB Plastic

• BATTERY

  BT-EN806 Internal 630Wh

• DISPLAY

  Shimano SC-E600

• SWITCH

  SW-EN600L Left Hand Switch for Assist Mode Change

• EXTRAS

  Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap

• RANGE, CHARGING TIME

  19-50 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 4 Hours
