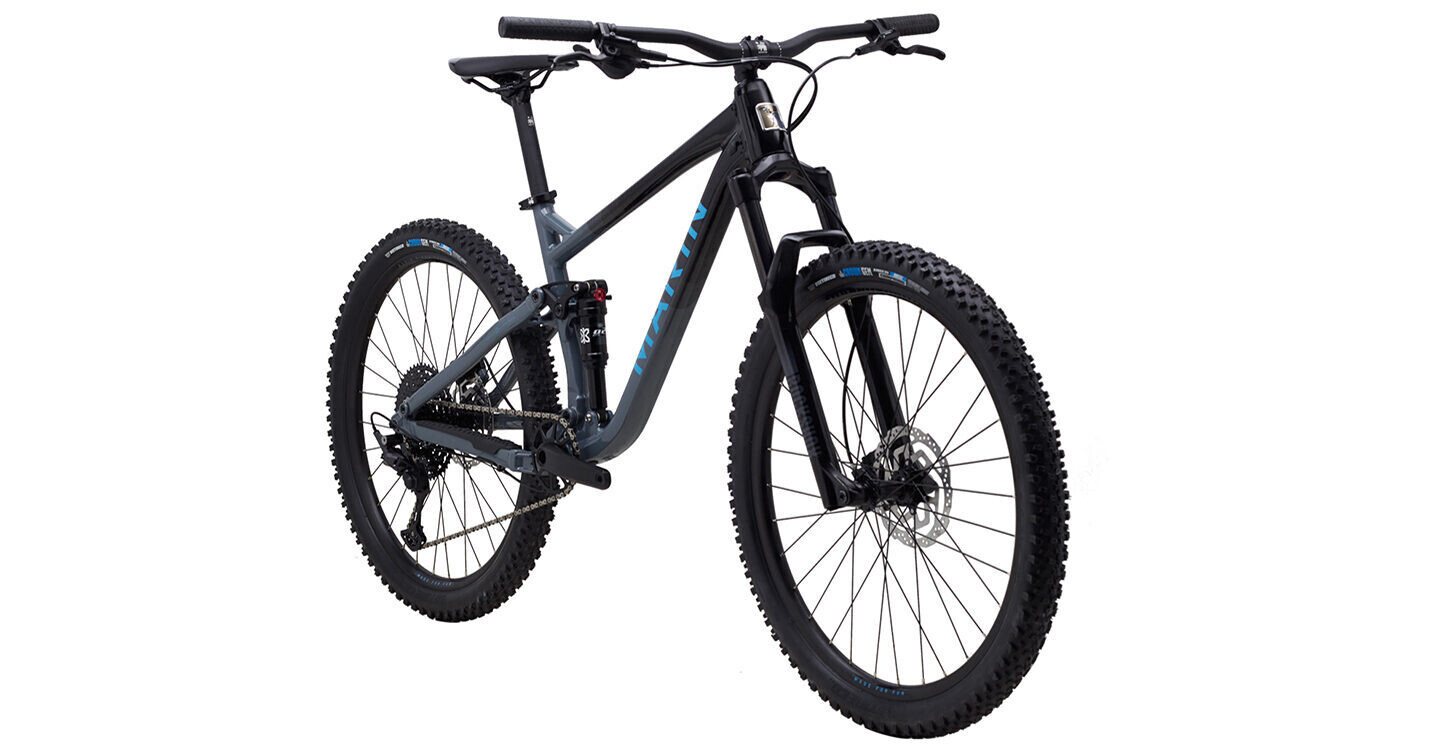

2022 MARIN Rift Zone 1 - 27.5" Gloss Black/Charcoal/Blue Large

ALL AROUND TRAIL ENJOYMENT

HAVING FUN

The Rift Zone 27.5 is our most playful trail bike, made for the rider that catches a bit of air off of every root in the trail, is always looking for an alternate line, and ends every ride with a smile. This is an all-around suspension bike with trail performance far out stretching the asking price.

FRAME

• Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

FRONT SUSPENSION

• RockShox Recon Silver RL 27.5", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 37mm Offset

REAR SUSPENSION

• X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

RIMS

• Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

HUB, REAR

• Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

HUB, FRONT

• Shimano HF-MT400B, 110x15mm, Centerlock

SPOKE, NIPPLES

• 14g Black Stainless Steel

TIRES

• Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready

DERAILLEUR, REAR

• Shimano Deore, 11 Speed, SGS

DERAILLEUR, FRONT

• -

SHIFT LEVER

• Shimano Deore, 11-Speed, SL-5100R

CRANKSET

• Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET

• External Sealed Cartridge Bearing

CHAIN

• KMC X-11 Silver and Black

CASSETTE

• SunRace, 11-Speed, 11-51T, ED Black

BRAKE, FRONT

• Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE, REAR

• Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

• Shimano BL-MT201 Hydraulic

HANDLEBAR

• Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

• Marin 3D Forged Alloy, 35mm

GRIPS

• Marin MTN, Closed End

HEADSET

• FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

• Marin Alloy, 30.9mm

SADDLE

• Marin Speed Concept

PEDALS

• -

EXTRAS

• Closed 9-12 Thru-Axle QR System
